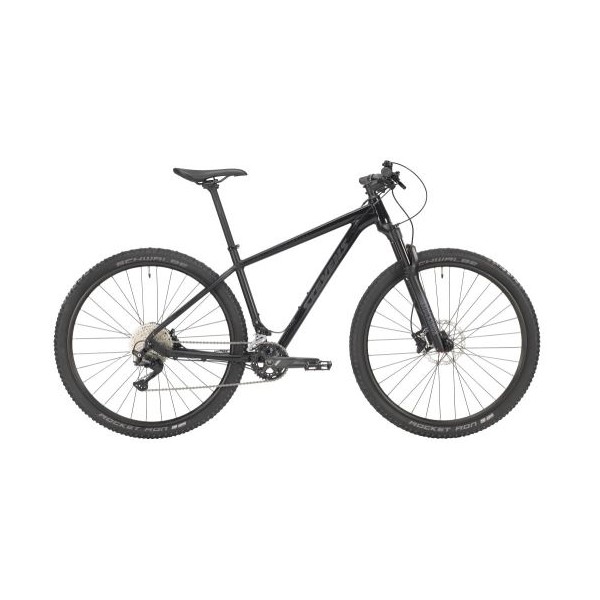

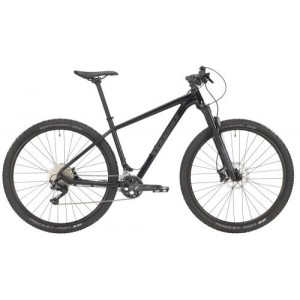

STEVENS DEVILS TRAIL 29

Frame



Aluminium 6061 TB

• O.L.D.: 135 mm
• Brake: IS disc
• BB: BSA 73 mm
• Front derailleur mount: direct mount (high)
• Cable routing: internal (shifting)/external (brake)
• Rack mounts

 Přední vidlice



Rock Shox Recon Gold RL

• Travel: 100 mm
• Air suspension
• Remote Lockout
• Tapered Steerer 1 1/8" - 1 1/2"
• O.L.D.: 110 mm
• Brake: postmount disc 6"

Pohon

 Kliky



Shimano Deore FC-M5100-2

• 36-26 T
• BB type: BSA 73 mm / 2-Piece

 Přesmykač



Shimano Deore

• FD-M5100-D

 Přehazovačka



Shimano Deore Shadow+

• RD-M5120-SGS
• 11-speed
• Direct Mount
• Total capacity: 41 T

 Řetěz



Shimano CN-HG601

 Kazeta



Shimano Deore

• CS-M5100
• 11-speed
• Combination: 11-13-15-17-19-21-24-28-32-37-42 T

Kola

 Nábojovy



Shimano HB-MT400-B/Deore FH-M6000

• Axle: QR15x110/10x135 mm

 Ráfky



Oxygen RM-M19

• ETRTO: 19 x 584 | 19 x 622

 Pneumatiky



Schwalbe Rocket Ron Performance

• Tire size: 57-584 | 622
• Foldable
• Addix compound

• Hlavové složení



  STEVENS MTB Taper 1 1/8"-1 1/2"

  • Upper bearing cup: ZS44/28.6
  • Lower bearing cup: ZS55/40

   Brzdy



  Shimano BR-MT410

  • Hydraulic disc brake
  • Rotor: SM-RT54
  • Rotor size: 180/160 mm
  • Center-Lock

  Pohon

   Kliky



  Shimano Deore FC-M5100-2

  • 36-26 T
  • BB type: BSA 73 mm / 2-Piece

   Přesmykač



  Shimano Deore

  • FD-M5100-D

   Přehazovačka



  Shimano Deore Shadow+

  • RD-M5120-SGS
  • 11-speed
  • Direct Mount
  • Total capacity: 41 T

   Řetěz



  Shimano CN-HG601

   Kazeta



  Shimano Deore

  • CS-M5100
  • 11-speed
  • Combination: 11-13-15-17-19-21-24-28-32-37-42 T

  Kola

   Nábojovy



  Shimano HB-MT400-B/Deore FH-M6000

  • Axle: QR15x110/10x135 mm

   Ráfky



  Oxygen RM-M19

  • ETRTO: 19 x 584 | 19 x 622

   Pneumatiky



  Schwalbe Rocket Ron Performance

  • Tire size: 57-584 | 622
  • Foldable
  • Addix compound

  Cockpit

   Řidítka



  Oxygen Driver

  • Width: 700 mm
  • Backsweep: 9°
  • Rise: 25 mm
  • Clamp: 31.8 mm

   Představec



  Oxygen Driver

  • Handlebar clamp: 31.8 mm
  • Angle: 6°

   Sedlo



  Oxygen Havoc

   Sedlovka



  Oxygen Driver

  • Length: 350 mm | 400 mm
  • Diameter: 27.2 mm
  • Insertion depth: min. 100 mm

   Řazení



  Shimano Deore

  • SL-M5100
  • 11-speed

   Brzdové páky



  Shimano BL-MT401

  • 2 finger
  • Aluminium lever

  Data

   Hmotnost



  13.2 kg

   Velikost



  27,5" - 16" | 29" - 18", 20", 22", 24"

   Barva



  Stealth Black

   Laden weight



  115 kg

  • Bike incl. rider, clothing and luggage
